Spatial Tools#

Georeferencer#

The Georeferencer tool lets you assign or correct the spatial reference system (CRS) of a raster dataset and apply geometric transformations to align it with real-world coordinates.

Reference System Information#

A reference system (more commonly known as a spatial reference system (SRS) or coordinate reference system (CRS)) defines how the pixel coordinates of your raster image are translated into real-world coordinates.

Reference systems can be represented in several forms. Common representations include:

1. WKT Strings#

Example:

GEOGCRS["WGS 84",
    DATUM["World Geodetic System 1984",
        ELLIPSOID["WGS 84",6378137,298.257223563,
            LENGTHUNIT["metre",1]]],
    PRIMEM["Greenwich",0,
        ANGLEUNIT["degree",0.0174532925199433]],
    CS[ellipsoidal,2],
        AXIS["latitude",north],
        AXIS["longitude",east],
    ID["EPSG",4326]]

2. PROJJSON Schemas#

{
  "type": "GeographicCRS",
  "name": "WGS 84",
  "datum": {
    "type": "GeodeticReferenceFrame",
    "name": "World Geodetic System 1984",
    "ellipsoid": {
      "name": "WGS 84",
      "semi_major_axis": 6378137,
      "inverse_flattening": 298.257223563
    }
  },
  "coordinate_system": {
    "subtype": "ellipsoidal",
    "axes": [
      {
        "name": "Latitude",
        "direction": "north",
        "unit": "degree"
      },
      {
        "name": "Longitude",
        "direction": "east",
        "unit": "degree"
      }
    ]
  }
}

3. Authority Identifiers#

Example: EPSG:4326

An authority identifier consists of an authority name and an authority code. An authority name specifies the organization that maintains a catalog of coordinate reference systems. An authority code is used to access a specific spatial reference system in that organization. Together, you are able to easily access the parameters that describe a coordinate reference system without having to specify the full WKT string or full PROJJSON schema.

The Georeferencer tool in WISER allows you to specify a coordinate reference system by the authority name and authority code.

Georeferencer authority code entry dialog

If you do not know your authority name or authority code but you do have the WKT string or PROJJSON schema, then you will likely be able to find your authority name and code combo. The example below guides you through this process.

Say you have this WKT string (found in your .hdr file):

coordinate system string = {PROJCS["UTM_Zone_11N",GEOGCS["GCS_WGS_1984",DATUM["D_WGS_1984",SPHEROID["WGS_1984",6378137.0,298.257223563]],PRIMEM["Greenwich",0.0],UNIT["Degree",0.0174532925199433]],PROJECTION["Transverse_Mercator"],PARAMETER["False_Easting",500000.0],PARAMETER["False_Northing",0.0],PARAMETER["Central_Meridian",-117.0],PARAMETER["Scale_Factor",0.9996],PARAMETER["Latitude_Of_Origin",0.0],UNIT["Meter",1.0]]}

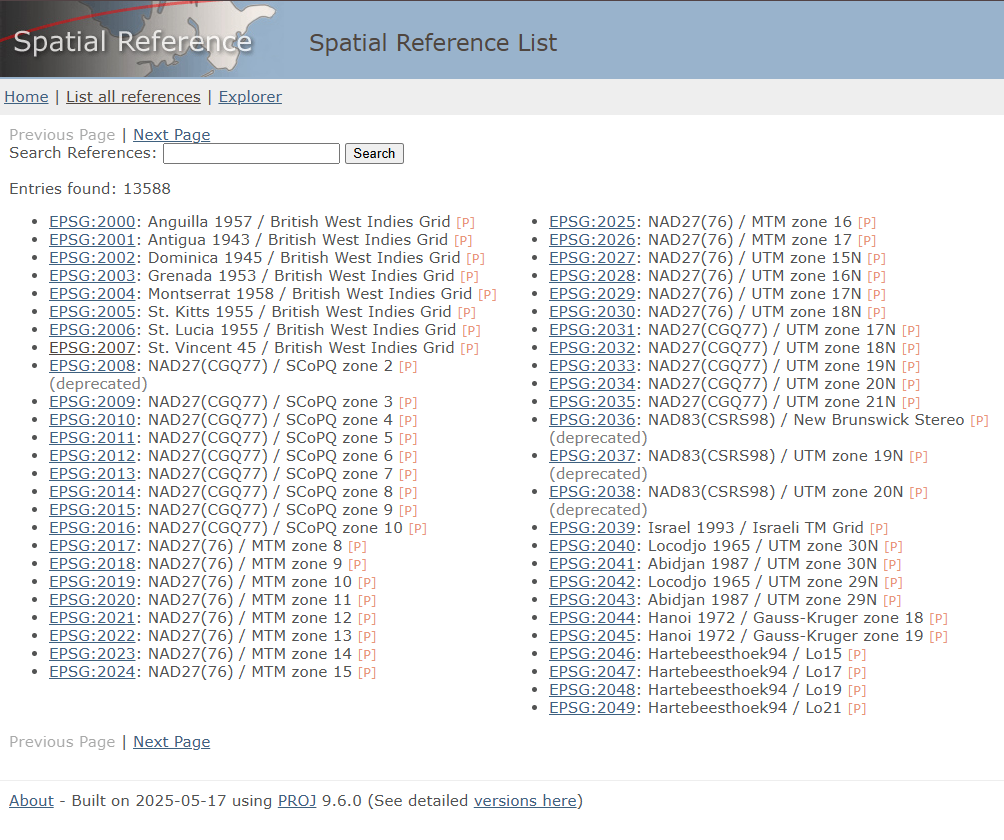

You can see it references UTM Zone 11N and WGS 1984. Go to spatialreference.org and search for UTM Zone 11N WGS 1984.

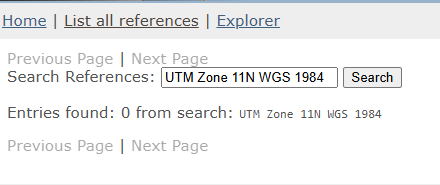

Search returning no results with a very specific query

If the search returns no results, try a less specific term such as UTM Zone 11N WGS.

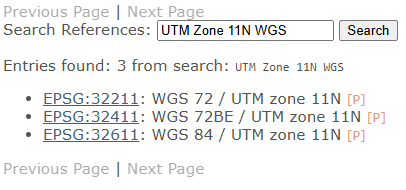

Successful search result for UTM Zone 11N WGS

Click one of the results to verify it matches your WKT string.

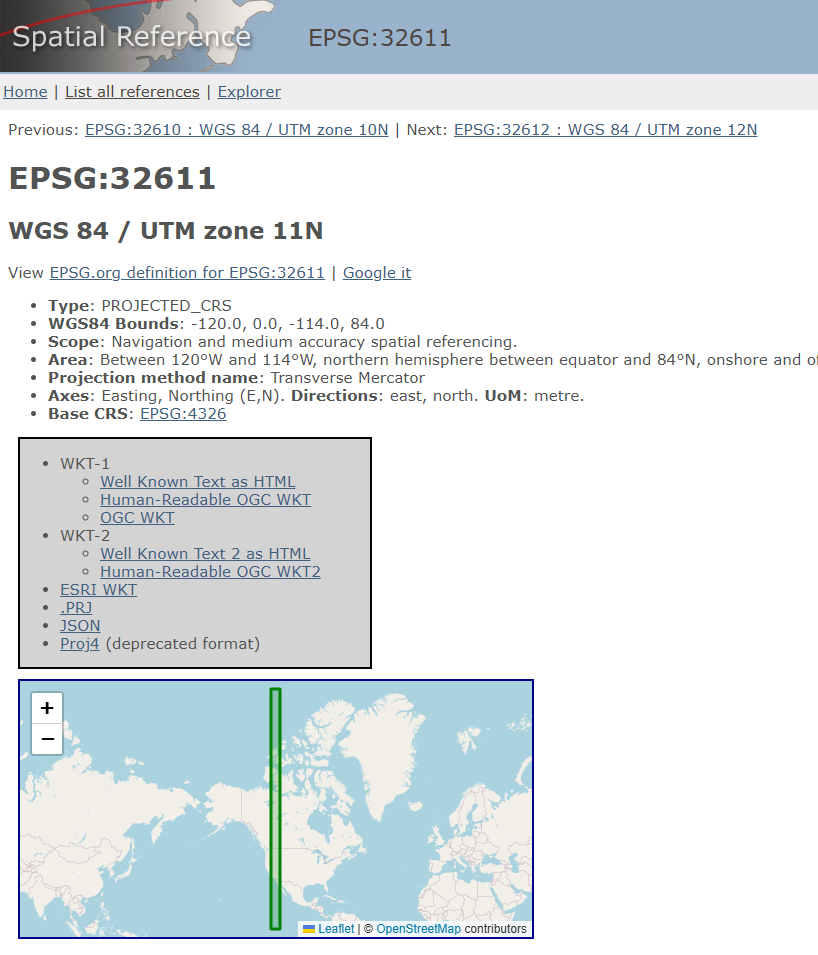

EPSG 32611 reference system page on spatialreference.org

Click WKT-1 as HTML to view the WKT string for that authority code.

Clicking the WKT-1 as HTML link on the reference system page

Compare the WKT string at the URL with your own WKT string to confirm they match.

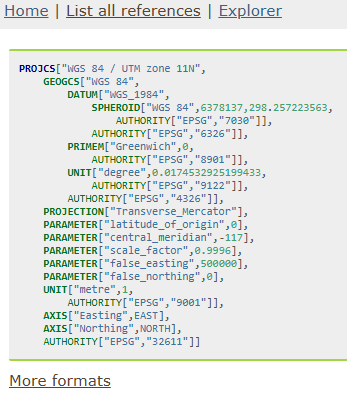

WKT string displayed in a browser from the spatialreference.org URL

Finally, enter the authority name and code (e.g. EPSG:32611) into WISER.

Entering the authority code EPSG:32611 into WISER

Similarity Transform#

The similarity transform tool allows you to do two things: rotate/scale an image and translate an image’s coordinate system.

Translating Coordinate System#

This section refers to the tool with the title ‘Translate Coordinate Sys’ in the Similarity Transform Dialog window.

The way we translate the coordinate system is by changing the upper-left coordinates of the geotransform. If you do not know what a geotransform is, this link is a useful reference. From this link, you will see that we change GT(0) and GT(3). This translates the geotransform for your coordinate system.

GT(0) corresponds to Lon/East and GT(3) corresponds to Lat/North. When the ‘Translate Lat/North’ and ‘Translate Lon/East’ fields are 0, the ‘New Upper Left Pixel Lat/North’ field will equal GT(3) and the ‘New Upper Left Pixel Lon/East’ field will equal GT(0). By entering values into the ‘Translate Lat/North’ and ‘Translate Lon/East’ editable fields, you will change the new upper left coordinate of your geo transform.

You can click on any pixel in the raster dataset and see the new spatial coordinate it will have. This information is under the raster image. Note that this feature only works with datasets that have geographic information.
